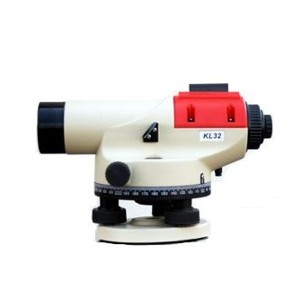

Automatic Level Kolida KL-32
Automatic Level KOLIDA KL series are robust, budget-priced construction levels. They are quick to set up, simple to use and accurate, with clear, bright optics for easy readings. Superior performance at a great price. Robust and accurate, Air-damped compensator, Water resistant (IP55) Double-sided endless fine drive, Pentaprism for easy viewing of circular level, Horizontal circle with 400° division Budget-priced
AUTOMATIC LEVEL KOLIDA KL SERIES
| Model | KL20 | KL24 | KL28 | KL32 |
| Magnification | 20× | 24× | 28× | 32× |
| Standard Deviation for 1Km Double-Run Leveling | ±2.5mm | ±2.0mm | ±1.5mm | ±1.0mm |
| Objective Aperture | 32mm | 38mm | 40mm | 40mm |
| Setting Accuracy | ±0.8″ | ±0.8″ | ±0.5″ | ±0.3″ |
| Resolution Power | 4.5″ | 4″ | 3″ | 3″ |
| Image of Telescope | Erect | |||
| Working Range | ±15′ | |||
| Compensator Type | Dual-Damping TM (Air Damping + Magnetic Damping) | |||
| Shortest Focusing Distance | 0.6m | |||
| Field of View | 1°20′ | |||
| Multiplication Constant | 100 | |||
| Additive Constant | 0 | |||
| Sensitivity of Circular Level | 8’/2mm | |||
| Horizontal Outer Circle | 360°/1° or 400gon/ 1gon | |||
| Central Thread | 5/8″×11 | |||
| Recommended Tripod | Light-duty Tripods | |||
| Standard Accessories | Adjusting Pin, Desiccating Agent, Hex Key, Plumb Bob, User Manual | |||
| Packing Details | 4pcs per Carton; 14kgs per Carton; Dimensions per Carton: 0.055CBM (= 60cm ×39 |
|||
