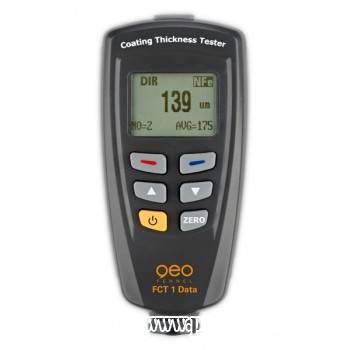

Coating Thickness Tester Geo Fennel FCT 1 Data
Coating Thickness Tester for fast testing and measuring of non-magnetic coatings on steel or non-ferrous metals.
Trades and tasks: Paint shops, car industry, construction
Features
- Internal memory for 80 readings per group
- Easy data transfer to PC by USB
- PC software
- Measures insulating coatings on non-ferrous metals
- Automatic recognition of the material (Fe / NFe)
- Sensor with V-groove for measurements of round objects
- Magnetic induction and eddy current measuring principle
- Single and permanent measurement
- AVG / Max / Min function
- Alarm function
Supplied with
- 2 x AA batteries
- USB cable
- Software
- Calibration accessories
- Case
Technical data
| Sonde F | Sonde N | |
|---|---|---|
| Working principle | Magnetic induction | Eddy current principle |
| Measuring range | 0 – 1250 μm | 0 – 1250 μm |
| 0 – 49,21 mils | 0 – 49,21 mils | |
| Guaranteed tolerance | 0 – 850 μm (±3 % +1 μm) | 0 – 850 μm (±3 % +1,5 μm) |
| (of reading) | 0 – 33,46 mils | 0 – 33,46 mils |
| (± 3 % + 0,039 mils) | (± 3 % + 0,039 mils) | |
| 850 – 1250 μm (±5 %) | 850 – 1250 μm (±5 %) | |
| 33,46 – 49,21 mils (±5 %) | 33,46 – 49,21 mils (±5 %) | |
| Resolution 0 – 50 μm | 0,1 μm | 0,1 μm |
| Resolution 0 – 1,968 mils | 0,001 mils | 0,001 mils |
| Diameter of minimum area | 7 mm | 5 mm |
| Basic thickness of material | 0,5 mm | 0,3 mm |
| Working temperature | 0 – +40 °C | 0 – +40 °C |
| Working relative humidity | 20 % ~ 90 % | 20 % ~ 90 % |
| Power supply | 2 x AAA NiMH | 2 x AAA NiMH |
| Size | 113,5 x 54 x 27 mm | 113,5 x 54 x 27 mm |
| Weight | 110 g | 110 g |
