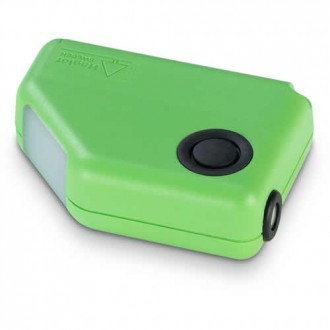

Digital Compass Clinometer Haglof HCH

Description :

The Haglof HCH Clinometer is a great surveying tool used to measure heights, horizontal and vertical angles with the push on one single button. To better reach the desired target, the HCH Clinometer features an aiming view inside the LCD data display and it delivers all your measurements almost instantly right on the scope.

The Haglof Clinometer has a built-in 360 degrees azimuth compass that allows you to measure horizontal angles with an accuracy of 2.5 degrees which makes it very useful for survey work. The Haglof HCH also features an inclinometer for vertical angle measuring, it’s range goes from -55 degrees to +85 degrees with an accuracy of up to 0.2 degrees.

This rangefinder is also capable of measuring heights virtually from any distance. It can measure objects up to 999 ft tall with an accuracy up to 0.1 ft.

The Haglof HCH can be factory set in different ways, depending on your preferred measurement units. You can choose between the Feet/Degrees, Feet/Percent, Meters/Degrees, and Meters/Percent models.

The Haglof HCH Clinometer features a built-in magnetic declination and it’s very easy to calibrate. This Haglof tool is great for engineers and land surveyors and it also has built-in digital functions that correct discrepancies on the measurements and adjust the compass if it’s not held properly.

Features:

• Clinometer measures angles from -55 to +85 degrees
• 0.2 degree inclination accuracy
• Measure in meters and degrees
• Electronic clinometer
• Digital compass
• In-scope LCD back-lit display
• Built-in magnetic declination
• 999 ft height measuring range
• Up to 0.1 ft height accuracy
• 1 button operation
• Comes in green
• Measures horizontal and vertical angles and height
• 360 degrees azimuth digital compass
• Easy calibration
• Power: 1 x 1.5V AA
• Low battery consumption
• Powerful and rugged
• Small and compact
• Weights 1.8 oz

Specifications:

• Size:20x63x44mm/0.8×2.5×1.7”.
• Weight:50g/1.8oz (incl. battery).
• Battery:1 x 1.5 V AA alkaline. Warning when low.
• Temperature:Min -15° Max 45°C / Min 5° Max 113°F.
• Display:LCD, Backlit.
• Summer:Yes.
• Consumption:15mW.
• Height:Min 0 Max 999 m/ft Resolution: 0.1 m/ft < 100m/ft or 1m/ft > 100m/ft.
• Angles:-55˚ to 85˚. Resolution: 0.1˚. Accuracy: +-0,2˚.
• Compass:0-360˚. Accuracy 2.5˚.

What’s in the Box:

• (1) Haglof HCH Compass Clinometer Height – Meters/Percents
• (1) Lanyard
• (1) AA battery
• (1) User manual
• (1) 1-year limited warranty
