Jual Digital Theodolite Pentax ETH-502 | Murah

Harga :
CALL
Merk :
Digital Theodolite Pentax ETH-502
Pembelian Maksimal :
4 Set
Pengiriman :
1 hari sejak pembayaran
Lokasi :
Dilihat :
148 Kali
Update Terakhir :
14-01-2018 13:23

Dapatkan Spesifikasi Harga Jual Digital Theodolite Pentax ETH-502 | Murah Produk Terbaik dari bliblialatsurvey Dealer / Suplier " dari Alat Telekomunikasi, Alat Komunikasi, Alat Survey, Alat Geologi, Alat Ukur, Alat Industri, Alat Teknik, GPS ( Global Positioning System) dll

Detail Produk

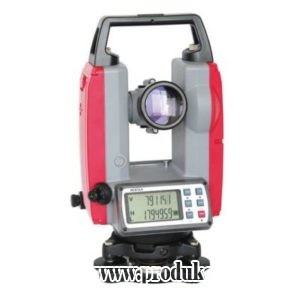

Digital Theodolite Pentax ETH 502

Features :

  • Large easy to read-display
  • Zero set and reverse angle display
  • A row of soft keys allows simple and fast operation.
  • A large display (LCD) is incorporated on both sides of the instrument. Both vertical and horizontal angles are displayed in degrees  or gons.
  • All the models have a bright 30x magnification telescope which ensures sharp and clear images even in poor light conditions.
  • Clockwise and counter-clockwise angle measurement
  • Conversion of the vertical angle to a percentage grade
  • Zero setting of the horizontal angle at any position
  • Horizontal angle ‘Hold key function
  • Clockwise and counter-clockwise angle measurement
  • Conversion of the vertical angle to a percentage grade
  • Zero setting of the horizontal angle at any position
  • Horizontal angle ‘Hold key function
  • Powered by Alkaline batteries

Applications

  • Setting out right angles and checking plumb
  • Alignment measurements
  • Anchor bolt layout
  • 90° layout
Electronic Theodolites ETH-500 Series Specification
Model   ETH-502 ETH-505 ETH-510 ETH-520
Telescope Imaging   Erect image
  Objective aperture   45 mm
  Magnification   30 x
  Resolution   ≤ 3”
  Field of view   1° 20’
  Shortest focusing distance   1.35 m
  Stadia multiplication constant   100
  Stadia addition constant   0
Angle Measuring Angle measuring mode   Absolute encoder
  Angle measuring accuracy 2″ 5″ 10″ 20″
  Angle display 1″/5″ 1″/5″ 5″/10″ 10″/20″
  Angle unit   360°/400G
Compensator Tilt sensor   Automatic vertical compensation
  Tilt compensator Yes Yes No No
  Soft switch ON/OFF ON/OFF – – – –
  Compensation range   ± 3’
Display unit Two-sided   Two-sided
Optical plummet Image Erect   Erect
  Magnification   3 x
  Angle of vision   3°
  Focusing range   0.5 m ~ ∞
  Sensitivity of tubular vial mm 30”/2 30”/2 40”/2 mm 40”/2 mm
  Sensitivity of circular vial   8’/2 mm
Dust & Water Protection     IP44
Type of base     Detachable
Power supply Battery   4 x single three (AAA) type dry battery
Ambient temperature For operation   -20°C – +50°C
Weight Instrument   4.5 kg
Measurements Carrying case   1.9 kg
  Instrument   W 175 mm x L 170 mm x H 334 mm
  Carrying case   W 330 mm x L 450 mm x H 220 mm
