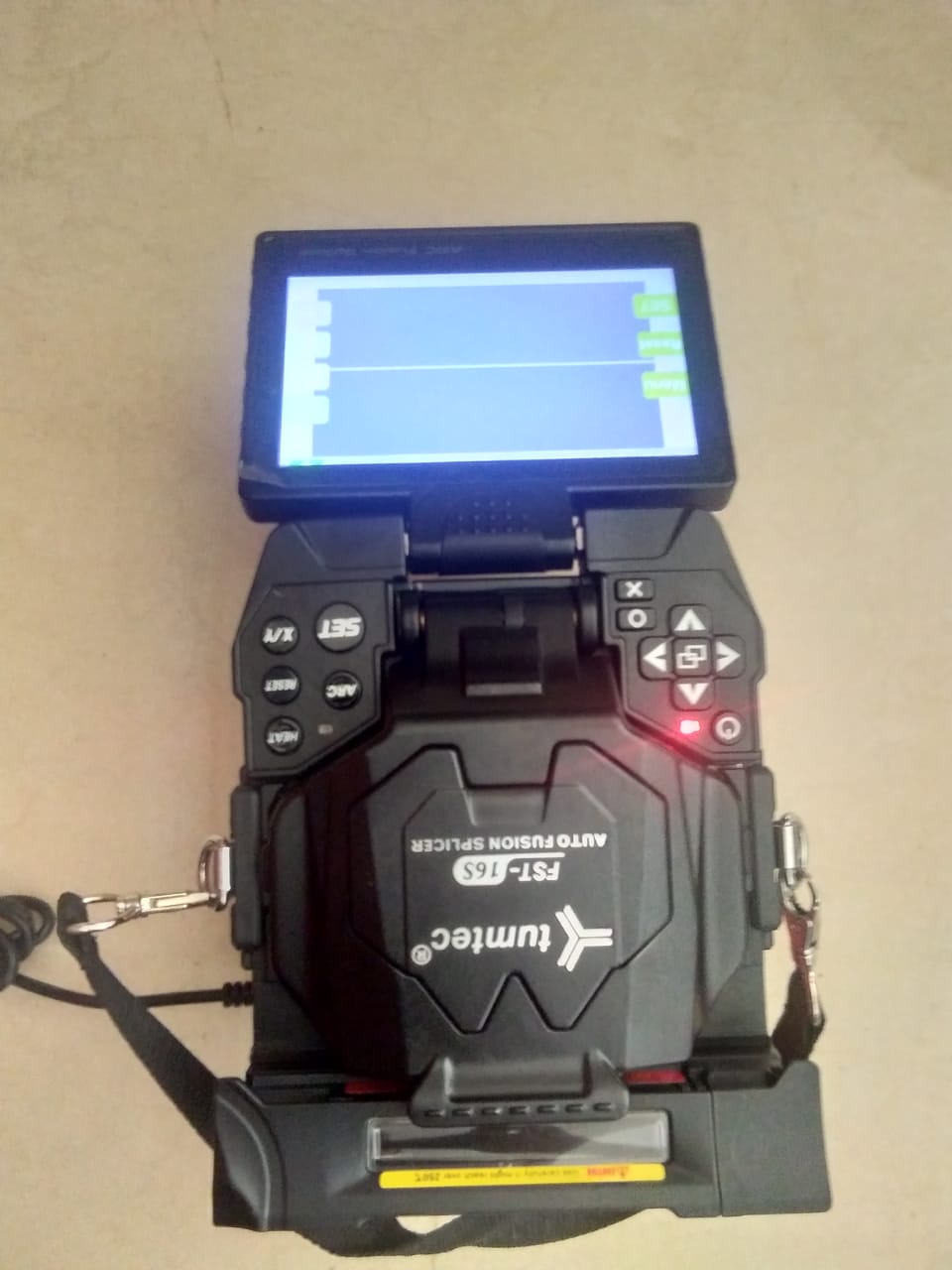

Detail Produk Optical Fiber Fusion Splicer Tumtec FST 16S
Optical Fiber Fusion Splicer Tumtec FST 16S adalah salah satu mesin splicing fusi yang paling kuat & cerdas dan mengadopsi teknologi pelurusan cladding. Ini memiliki CPU Quad-core tingkat industri (Terutama 1,4 GHz), yang menampilkan biaya daya dan pertunjukan rendah, dilengkapi layar sentuh LCD beresolusi tinggi 5 “untuk pengoperasian yang mudah. Ini juga menyediakan baterai berkapasitas tinggi 5200mAH untuk bekerja lebih jauh lagi di lapangan, yang khas adalah 280 siklus penyambungan / pemanasan. Teknologi inovatif menghadirkan kenyamanan tak terbatas. Dengan kinerja yang sangat baik dan stabil, FST-16S telah menjadi salah satu splicer fusi yang paling andal dan efektif untuk FTTX di pasar global.
Technical Parameters:
| Model | FST-16S |
| Number of Fiber | Single |
| Applicable Fibers | SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655) |
| Compatible Fiber / Cable | 0.25~3.0 mm / Indoor Cable (0.9mm/2.0mm/2.4mm) |
| Cleaved Length | Diameter: 0.125~1 mm / Cleave Length: 8~16 mm |
| Splicing Mode | Multiple splicing modes |
| Typical Splice Loss | 0.01-0.05db |
| Return Loss | >> 60 dB |
| Lighting | 1 Powerful White LED and Illuminated Keypads |
| Splicing Time | 6~8 seconds |
| Estimated Splice Loss | Available |
| Protection Sleeve Length | 20~60 mm |
| Heating Mode | Multi Heating Modes |
| Heating Time | Typical Heating Time: 30 sec |
| Records Storage | The latest 5000 Records |
| Tension Test | 1.5~2.0N |
| Operating Condition | Operating Altitude: 0~5000m above Sea Level, 0.95% Relative Humidity, -10~50°C, Max Wind 15m/s |
| Storage Condition | 0~95% Relative Humidity, -40~80°C |
| Display | 90° Bi-directional View, 5.0″ 800*480 Color High Resolution Display with Touch Screen |
| Fiber View & Magnification | X, Y, XY, X/Y : 500X Magnification |
| Power Supply | AC Input 100-240V, DC Input 12-15V |
| Battery Capacity | 5200mAh , Typical above 280 times (Splice+Heat) |
| Operating Methods | Button / Touch Screen |
| Automatic Calibration | Automatic ARC Calibration According to Air Pressure and Temperature |
| Electrode Life | 3500 ARC, can be Extended by Using an Electrode Grinder |
| Terminal | USB2.0 / Phone Jack |
| Dimension | 140W x 165L x 160H mm (including rubber bumper) / 130W x 165L x 150H mm(excluding rubber bumper) |
| Weight | 2.0KG (including rubber bumper) / 1.7KG (excluding rubber bumper)/ 0.38KG (battery) |
Item Including:
| Fusion Splicer | Tumtec FST-16S | 1 |
| High Precision Cleaver | TC-7S | 1 |
| Fiber Holder | FC16-02 | 1 |
| SOC Heater Cover | TC-SOC | 1 |
| AC Adapter | 1530-3c2.5 | 1 |
| Cooling Tray | CY-16 | 1 |
| Electrode | T-68 | 1 |
| Fiber Optic Stripper | F-33 | 1 |
| Battery Pack | LBY-68 | 1 |
| Power Cable | AC220V | 1 |
| Manual book | Manual | 1 |
| Manual CD | CD | 1 |
| Carrying Case | TYB-18 | 1 |
