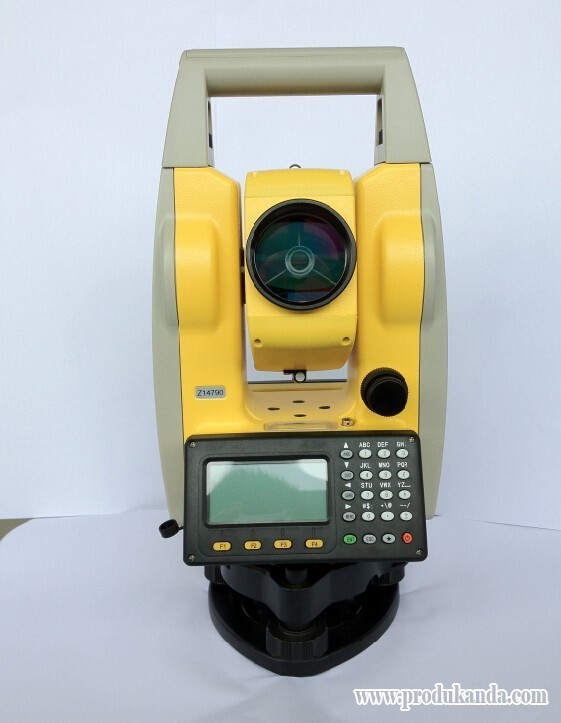

Total Station Hi-Target ZTS 120/ 120R

Total Station Hi-Target ZTS 120/ 120R Product Information and Details

Product description :
Model ZTS-120/ 120R
Angle Measurement( Hz, V)
Measurement Method Absolute Code
Minimum Readout 13
Angle Measuring Accuracy 23
Telescope
Magnification 30X
Field of View 1° 302
Minimum Focus Distance 1.5m
Reticle Illuminated
Compensator
System Single-axis liquid-electric tilt sensor Compensator
Working Range ± 32
Setting Accuracy 13
Distance measurement Reflector ( IR)
Range Single Prism( Atmosphere general / good ) 2000m/ 2500m
Reflector( 60mmx60mm) 800m
Accuracy( Fine/ Coarse/ Tracking) 2mm± 2ppm
Measurement Time Repeat 1s
Tracking 0.6s
Reflector-less ( RL)
Range White Target board 350m
Single Prism ? 7500m
Accuracy( short distance/ tracking/ prism) 3mm± 2ppm
Measurement Time( short distance/ tracking/ prism) 2s
General
Communication Internal Data Memory 20000 Points
Interface Standard RS232 port ( USB port / Bluetooth optional )
Data Format ASCII( DXF/ GSI optional )
Operation System Real-time English operating system
Display Graphics: 192* 96 pixels , 6 line* 12 characters
Keyboard Alpha-numerical keyboard
Laser Plummet Type Laser Point, Brightness Adjustable in steps
Centering Accuracy 1 mm at 1.5m instrument height
Power Supply Battery Type Lithium-Ion
Voltage/ Capacity ZBA-400: 7.4V 3000mAh
Operating Time with ZBA-400 16 hours
24hous( Continuous Angle Measurement )
Weight ( Incl. Battery & Tribrach) 5.5kg
Environmental Operating Temperature -20? ~ ? 50?
Storage Temperature -40? ~ ? 70?
Dust & Water Proof ( IEC60529) IP54
